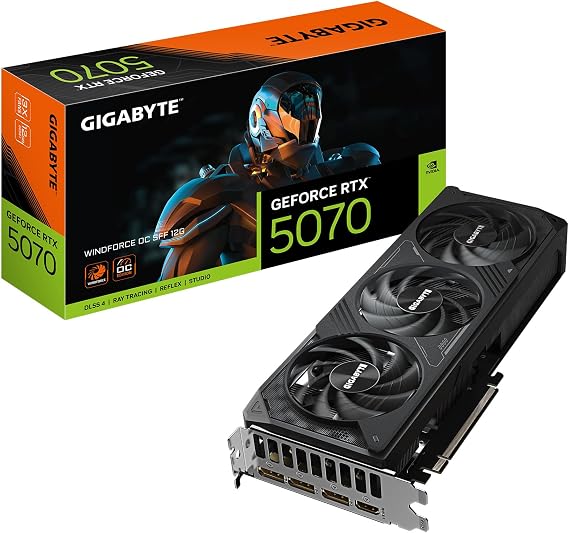

GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF 12G Review
A compact-for-its-class triple-fan RTX 5070 built around premium 1440p gaming, 12GB GDDR7 and NVIDIA's current feature set.
A practical RTX 5070 board with a specific size advantage
This is not a tiny low-profile card. It is an NVIDIA SFF-ready triple-fan design that keeps length and height controlled compared with many larger partner models.
Best for a strong 1440p build where case space matters
The RTX 5070 is naturally positioned for premium 1440p. GIGABYTE's board adds a small factory overclock and WINDFORCE cooling without stretching to the dimensions of many higher-tier cards.
- Best use: high-refresh 1440p gaming with modern NVIDIA features.
- Reasonable stretch: 4K with sensible settings and DLSS where appropriate.
- Main strength: compact-for-class dimensions and three-fan cooling.
- Main limit: 12GB is a balanced 1440p capacity, but not unlimited 4K headroom.
- Buying rule: compare the delivered Australian price with other RTX 5070 boards and faster alternatives.
GIGABYTE RTX 5070 WINDFORCE OC SFF 12G specifications
The following figures come from GIGABYTE's official page for model GV-N5070WF3OC-12GD.
| GPU | NVIDIA GeForce RTX 5070 |
|---|---|
| Model code | GV-N5070WF3OC-12GD |
| CUDA cores | 6,144 |
| Core clock | 2542 MHz, reference card 2512 MHz |
| Memory | 12GB GDDR7 |
| Memory speed | 28 Gbps |
| Memory bus | 192-bit |
| Card interface | PCI Express 5.0 |
| Dimensions | 282 x 110 x 50 mm |
| Recommended PSU | 750W |
| Power connector | 1 x 16-pin |
| Included adapter | 12V-2x6 to 2 x PCIe 8-pin |
| Display outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| Maximum displays | 4 |
| Maximum digital resolution | 7680 x 4320 |
| API support | DirectX 12 API, OpenGL 4.6 |
Source: GIGABYTE official specifications. Confirm the live listing because specifications and included accessories can vary by market or revision.
1440p is the centre of gravity
These are editorial suitability indicators, not invented frame-rate results. Actual performance changes with the game, CPU, settings, ray tracing, DLSS mode and driver.
1440p gaming
A strong match for high-refresh monitors, ray tracing and modern quality settings with sensible DLSS use.
4K gaming
Practical in many titles, but heavy ray tracing, maximum textures and 12GB capacity can require adjustment.
Creator and streaming
NVIDIA Studio, Broadcast and current NVENC support can suit buyers who game and create on one PC.
SFF-ready does not mean universal small-case compatibility
The label is useful, but every compact enclosure has its own length, height, slot, radiator and cable-routing limits. The 282 mm length is controlled for this performance class, while the 50 mm thickness and 16-pin cable still need attention.
Case-clearance layers
Start with the card dimensions, then subtract anything occupying the same physical space.
Power-cable headroom
Card height is 110 mm, but the connector and cable route require additional space before the side panel.
Three Hawk fans in a compact thermal system
GIGABYTE lists alternate-spinning Hawk fans, server-grade thermal conductive gel, a large copper plate, composite copper heat pipes, 3D active fans and screen cooling.
Hawk fan blades
The blade design is intended to improve airflow and pressure. Manufacturer percentage claims should not be treated as whole-card benchmark results.
Alternate spinning
Adjacent fans rotate in opposing directions to reduce turbulence between them and support a cleaner airflow path.
3D active fan
Semi-passive operation can stop the fans during suitable light loads. That does not mean the card is fanless while gaming.
Triple-fan airflow
Animated rotation shows the alternate-spin concept, not measured fan speed or noise.
Heat path
The copper plate collects heat from the GPU before heat pipes spread it through the fin stack.
Enough for the target, but not unlimited
The card combines 12GB GDDR7 at 28 Gbps with a 192-bit memory bus. That is a sensible configuration for high-quality 1440p, while 4K textures and heavy creator projects deserve closer attention.
Twelve-gigabyte working pool
VRAM holds textures, geometry, frames and application data close to the GPU. Capacity pressure varies by game, resolution and settings.
How to make the decision
Consider the next several years of actual use, not an abstract capacity argument.
Read what VRAM is and how much you need for the deeper explanation.
One 16-pin connector and a 750W recommendation
GIGABYTE includes a 12V-2x6 to two PCIe 8-pin adapter. Use the exact cable method approved by your PSU maker and seat every connector completely.
Included adapter path
A native compatible PSU cable is often cleaner when supplied or approved for the exact power-supply model.
Check wattage, quality, age, available connectors and manufacturer cable instructions.
Push plugs straight in until fully engaged. Never operate the system with a visibly partial connection.
Avoid a tight bend or sideways pull directly at the graphics-card socket.
Recheck the connector, routing, side-panel clearance and card support after cable management.
Test the build before placing the order
This quick tool screens the obvious measurements. The case and PSU manuals remain the final authority.
RTX 5070 WINDFORCE fit checker
Use the case maker's usable measurements after subtracting fans and radiators.
The card is 282 mm long. Front cooling hardware can reduce the case's advertised GPU space.
The 110 mm card height does not include all room needed for a comfortable 16-pin cable route.
Confirm slot clearance and any neighbouring expansion cards or bottom-mounted fans.
GIGABYTE recommends a 750W PSU. Overall system demand and PSU quality still matter.
PCIe generations are backward compatible. Read PCIe 5 vs PCIe 4 for GPUs for context.
Reasons to choose it and reasons to compare
Strengths
- Strong match for premium 1440p gaming
- 12GB GDDR7 running at 28 Gbps
- Small factory overclock over the reference figure
- Compact-for-class 282 mm length
- Triple-fan WINDFORCE cooler
- Semi-passive fan operation at suitable light loads
- DisplayPort 2.1b and HDMI 2.1b connectivity
- Reinforced structure and backplate protection
Tradeoffs
- SFF-ready does not guarantee a fit in every compact case
- 50 mm thickness still occupies meaningful slot space
- 16-pin cable needs additional side-panel clearance
- GIGABYTE recommends a 750W power supply
- 12GB can face pressure in heavy 4K use
- A larger cooler may be quieter depending on the exact model
- No measured thermal or acoustic result is claimed here
- Live Australian price decides whether the OC premium is worthwhile
Compare the delivered price with the options in the best GPU under $1,000 AUD guide. If buying through a marketplace seller, review GPU warranty considerations in Australia before relying on regional support.
Is this the right compact RTX 5070 for you?
Confirm 282 x 110 x 50 mm clearance, the 16-pin cable route, a quality 750W PSU, seller details and the delivered price. If those checks pass, the WINDFORCE OC is a focused 1440p choice.
Useful MyGPU Australia guides
RTX 5070 WINDFORCE OC SFF FAQs
Short answers to the questions that matter before ordering.
Is it good for 1440p gaming?+
Yes. Premium 1440p gaming is the natural target for the RTX 5070. Actual performance depends on the game, CPU, settings, ray tracing and DLSS support.
Can it play games at 4K?+
It can handle 4K in many games when settings and DLSS are chosen carefully. Its 12GB memory capacity and GPU tier make it less comfortable for uncompromised 4K than higher-tier cards.
How large is the card?+
GIGABYTE lists dimensions of 282 by 110 by 50 millimetres. SFF-ready does not guarantee compatibility with every compact case, so all three measurements and the power cable space must be checked.
What power supply does it need?+
GIGABYTE recommends a 750W power supply. The card uses one 16-pin connector and includes a 12V-2x6 to two PCIe 8-pin adapter.
What is the OC clock speed?+
GIGABYTE lists a 2542 MHz core clock for model GV-N5070WF3OC-12GD, compared with a 2512 MHz reference-card figure.
Is 12GB VRAM enough?+
Twelve gigabytes is a sensible match for high-quality 1440p gaming. Heavy 4K textures, creator projects and future games can place greater pressure on that capacity.
How many display outputs are included?+
It has three DisplayPort 2.1b outputs and one HDMI 2.1b output, with support for up to four displays.
Is this a hands-on benchmark review?+
No. This is a specification-led buying guide using official manufacturer information and Australian purchase considerations. It does not claim measured frame rates, noise or temperatures.
